I-Integrated Water Closet Flat Packed Homes
Indlu yendlu yokugezela okungukuthi ngesisekelo sendlu ejwayelekile egcwele izitsha ezigcwele inhlabathi ikhulisa uhlaka lwasendlini, isitsha sokugezela, ipayipi lokuphakela amanzi kanye ne-drainage nezinye izinsiza, ukuze kuhlangatshezwane nezidingo zabantu abazowasha.
Indlu yekhabethe lamanzi ihlanganisa ibhokisi elingamamitha angu-3, inkundla yokugezela, amasethi angu-2 wezinki ensimbi engagqwali (amaseli angu-5 anekhanda elilodwa elivamile lokupholisa), isethi yephuli ye-mop engu-1 (enompompi ojwayelekile), isethi engumpompi wokuwasha isethi engu-1, ipayipi lensimbi engagqwali. , isethi engu-1 eyisipele yaphansi, isicabha esinomshini wokungenisa umoya.Ompompi bayo nezinye izinto ziwumgogodla wethusi, zisetshenziswa izinto zohlobo oludumile zaseChina, ikhwalithi inokwethenjelwa kakhulu.
Indlu ingaklanywa ngokuya ngezidingo zekhasimende, njengokuthi: Indlu yekhabethe lamanzi yengezwa umsebenzi wokugeza.
Ama-partitions ayengezwa ukuze ahlukanise igumbi lokugeza negumbi lokuwasha.
Olunye uhlangothi lokugeza, olunye uhlangothi lwekhabethe lamanzi
Isitsha sokugeza ngesitayela esihlukile
Umhlobiso
Uphahla
Uphahla lwe-V-170 (uzipho olufihliwe)
Uphahla lwe-V-290 (ngaphandle kwesipikili)
Ingaphezulu lephaneli yodonga
Iphaneli ye-wall ripple
Iphaneli ye-Orange peel
I-insulation layer yephaneli yodonga
Uboya betshe
Ikotini yengilazi
Isitsha
Isitsha esivamile
Isitsha semabula
Isibani
Isibani esiyindilinga
Isibani eside
Izingubo zokugeza isitsha
Isitsha sokugeza izingubo ze-SS
Izingubo zemabula ziwasha indishi
Iqembu le-GS Housing linenkampani yokuklama - Beijing Boyuhongcheng Architectural Design Co., Ltd.
isikhungo sokuklama siyakwazi ukuhlinzeka ngezinhlelo zemihlahlandlela yobuchwepheshe eyenziwe ngokwezifiso futhi silawule ukwakheka okuphusile kumakhasimende ahlukene.futhi ihumusha incazelo yezakhiwo ezakhiwe ngaphambilini ngokombono wamakhasimende.

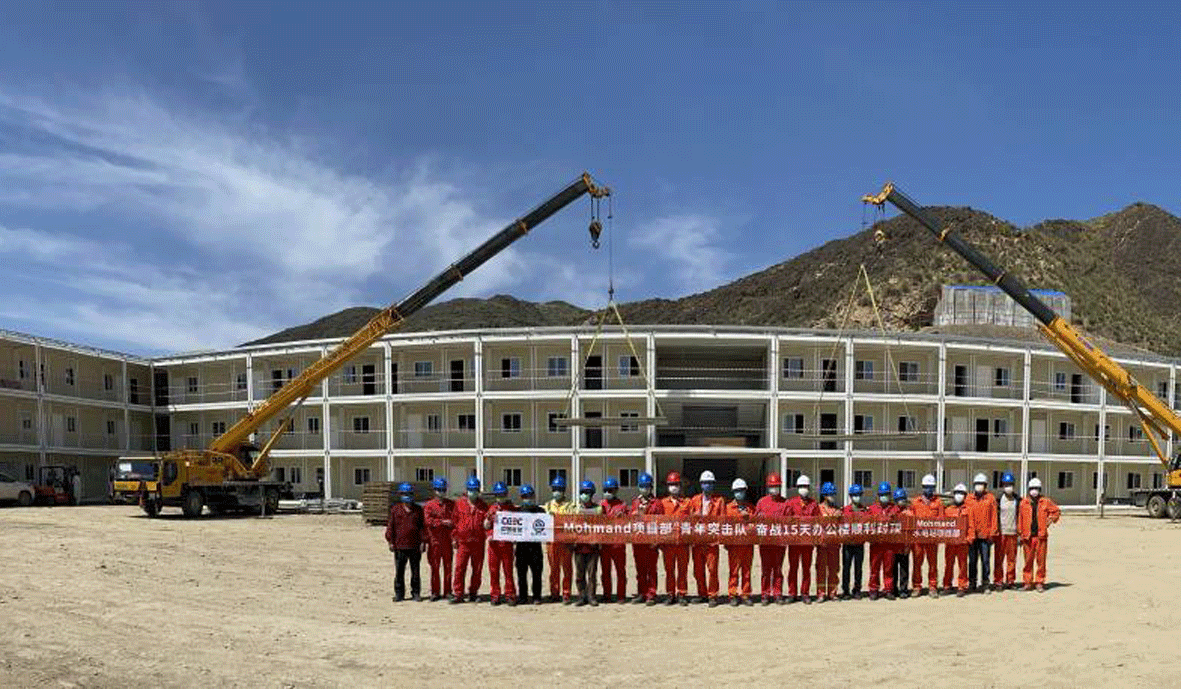

Njengamanje, sesenze amaphrojekthi amaningi amakhulu: Pakistan Mohmand Hydropower Project, Trinidad Airport Project,Sri Lanka Colombo Project,La Paz Water Supply Project eBolivia, China Universal project, Daxing International Airport project, “HUOSHENGSHAN” & “LEISHENSHAN” iphrojekthi yezibhedlela, kanye nemiklamo ehlukahlukene yokwakha ye-Metro e-China... ehlanganisa amakamu onjiniyela, ezohwebo, ezomphakathi, ezemfundo, izimboni zamakamu ezempi njll.
Izinhlobo eziyi-1000-1500 zendlu yeziqukathi zingahlangabezana nezidingo zezinhlobo ezahlukene zehhovisi, indawo yokuhlala, ukugeza, ikhishi, inkomfa nokunye.
I-Design Institute yezindlu ze-GS iwumgogodla wobuchwepheshe benkampani.Inesibopho sokuthuthukiswa kwemikhiqizo emisha yenkampani, kanye nokuthuthukiswa komkhiqizo okhona , umklamo wohlelo, umklamo wokudweba wokwakha, isabelomali kanye neminye imisebenzi yezobuchwepheshe ehlobene.Ngokulandelanayo bethule uhlobo olusha lwe-house-G egcwele amafulethi, izindlu ezifakwa ngokushesha neminye imikhiqizo, bathole amalungelo obunikazi angama-48 okusungulwa kazwelonke.
| I-Water Closet House | ||
| Ukucaciswa | L*W*H (mm) | Usayizi wangaphandle 6055*2990/2435*2896 Usayizi wangaphakathi 5845*2780/2225*2590 usayizi owenziwe ngokwezifiso unganikezwa |
| Uhlobo lophahla | Uphahla oluyisicaba olunamapayipi amane angaphakathi (Drain-pipe cross size:40*80mm) | |
| Isitolo | ≤3 | |
| Idethi yokuklama | Impilo yesevisi edizayinelwe | Iminyaka engu-20 |
| Ukulayisha bukhoma phansi | 2.0KN/㎡ | |
| Ukulayisha okubukhoma kophahla | 0.5KN/㎡ | |
| Isimo sezulu | 0.6KN/㎡ | |
| I-Sermic | 8 degree | |
| Isakhiwo | Ikholomu | Ukucaciswa:210*150mm,Insimbi egoqayo ebandayo, t=3.0mm Material: SGC440 |
| I-Roof main beam | Ukucaciswa:180mm, Galvanized cold roll steel, t=3.0mm Material: SGC440 | |
| Ugongolo oluyinhloko lwaphansi | Ukucaciswa:160mm, Galvanized cold roll steel, t=3.5mm Material: SGC440 | |
| I-Roof sub beam | Ukucaciswa:C100*40*12*2.0*7PCS,Galvanized cold roll C steel,t=2.0mm Material:Q345B | |
| I-floor sub beam | Ukucaciswa:120*50*2.0*9pcs,”TT”insimbi ecindezelwe yomumo, t=2.0mm Material:Q345B | |
| Penda | I-powder electrostatic spraying lacquer≥80μm | |
| Uphahla | Iphaneli yophahla | Ishidi lensimbi elinemibala engu-0.5mm Zn-Al, elimhlophe-mpunga |
| Insulation impahla | Uvolo wengilazi ongu-100mm one-Al foil eyodwa.ukuminyana ≥14kg/m³, Ikilasi A Elingashi | |
| Uphahla | I-V-193 0.5mm ecindezelwe ishidi lensimbi elinemibala e-Zn-Al, isikhonkwane esifihliwe, esimhlophe-mpunga | |
| Phansi | Indawo yaphansi | Ibhodi le-PVC elingu-2.0mm, impunga emnyama |
| Isisekelo | Ibhodi lefayibha likasimende elingu-19mm, ukuminyana≥1.3g/cm³ | |
| Isendlalelo sokuvikela umswakama | Ifilimu yepulasitiki engenamanzi | |
| Ipuleti lokuvala elingezansi | 0.3mm Zn-Al camera board | |
| Udonga | Ubukhulu | 75mm ipuleti lesemishi lensimbi elinemibala eliwugqinsi;Ipuleti yangaphandle:0.5mm ikhasi orange aluminium plated zinc colorful steel plate, indlovu emhlophe, PE enamathela;Ipuleti elingaphakathi: 0.5mm i-aluminium-zinc plated ehlanzekile yensimbi yombala, grey emhlophe, i-PE coating;Adopt "S" uhlobo lwepulaki esibonakalayo ukuze uqede umthelela webhuloho elibandayo nelishisayo |
| Insulation impahla | rock wool, density≥100kg/m³, Ikilasi A Elingashi | |
| Umnyango | Ukucaciswa (mm) | W*H=840*2035mm |
| Okubalulekile | Ishutha yensimbi | |
| Iwindi | Ukucaciswa (mm) | Iwindi langaphambili: W*H=1150*1100,Iwindi langemuva: W*H==800*500 |
| Izinto zohlaka | Insimbi ye-pastic, 80S, Inenduku evimbela ukweba, iwindi lesikrini elingabonakali | |
| Ingilazi | 4mm+9A+4mm ingilazi ephindwe kabili | |
| Ezogesi | Amandla kagesi | 220V~250V / 100V~130V |
| Intambo | Intambo eyinhloko:6㎡, intambo ye-AC:4.0㎡,intambo yesokhethi:2.5㎡,intambo yokushintsha ukukhanya:1.5㎡ | |
| Umaphuli | I-miniature circuit breaker | |
| Ukukhanyisa | Izibani ezingangeni manzi eziyindilinga kabili, i-18W | |
| Isokhethi | 1pcs 5 izimbobo isokhethi 10A,1pcs 3 izimbobo AC isokhethi 16A,1pcs single uxhumano indiza switch 10A (EU /US ..standard) | |
| I-Water Supply & Drainage System | Uhlelo lokuhlinzeka ngamanzi | I-DN32, PP-R, ipayipi lokuphakela amanzi nokufakwa |
| Uhlelo lokudonsa amanzi | I-De110/De50, ipayipi lokudonsa amanzi le-UPVC nokufakwa | |
| Uhlaka Lwensimbi | Izinto zohlaka | Ipayipi lesikwele esiphekiwe 口40*40*2 |
| Isisekelo | Ibhodi lefayibha likasimende elingu-19mm, ukuminyana≥1.3g/cm³ | |
| Phansi | Iphansi le-PVC eliwugqinsi elingu-2.0mm, elimpunga ngokumnyama | |
| Impahla yenhlanzeko | Izinto zikagesi zenhlanzeko | 2pcs quintuple sink, 10pcs gooseneck faucet,1pcs umpompi womshini wokuwasha,1pcs usinki mop kanye faucet |
| Ukufakwa | i-gutter yensimbi engenasici, i-gutter yensimbi engenasici, i-1pcs standy floor drain | |
| Abanye | Ingxenye ephezulu nekholomu ihlobisa ingxenye | 0.6mm ishidi lensimbi enombala we-Zn-Al, elimhlophe-mpunga |
| I-Skirting | 0.8mm i-Zn-Al enombala ohlanganiswe isiketi sensimbi, esimhlophe-mpunga | |
| Izivalo zeminyango | 1pcs Door Closer, Aluminium (uyazikhethela) | |
| Adopt ukwakhiwa okujwayelekile, okokusebenza nokufakwayo kuhambisana nezinga likazwelonke.kanye, usayizi owenziwe ngezifiso kanye nezinsiza ezihlobene zinganikezwa ngokwezidingo zakho. | ||
