I-Female Toilet Ready Container House
Idizayini yendlu yangasese yabesifazane ezindlini ze-GS yenziwa umuntu.Indlu ingathuthwa iyonke, noma ipakishwe futhi ihanjiswe ngemva kokukhishwa, bese ihlanganiswa futhi esizeni futhi isetshenziswe ngemva kokuxhunywa ngamanzi nogesi.

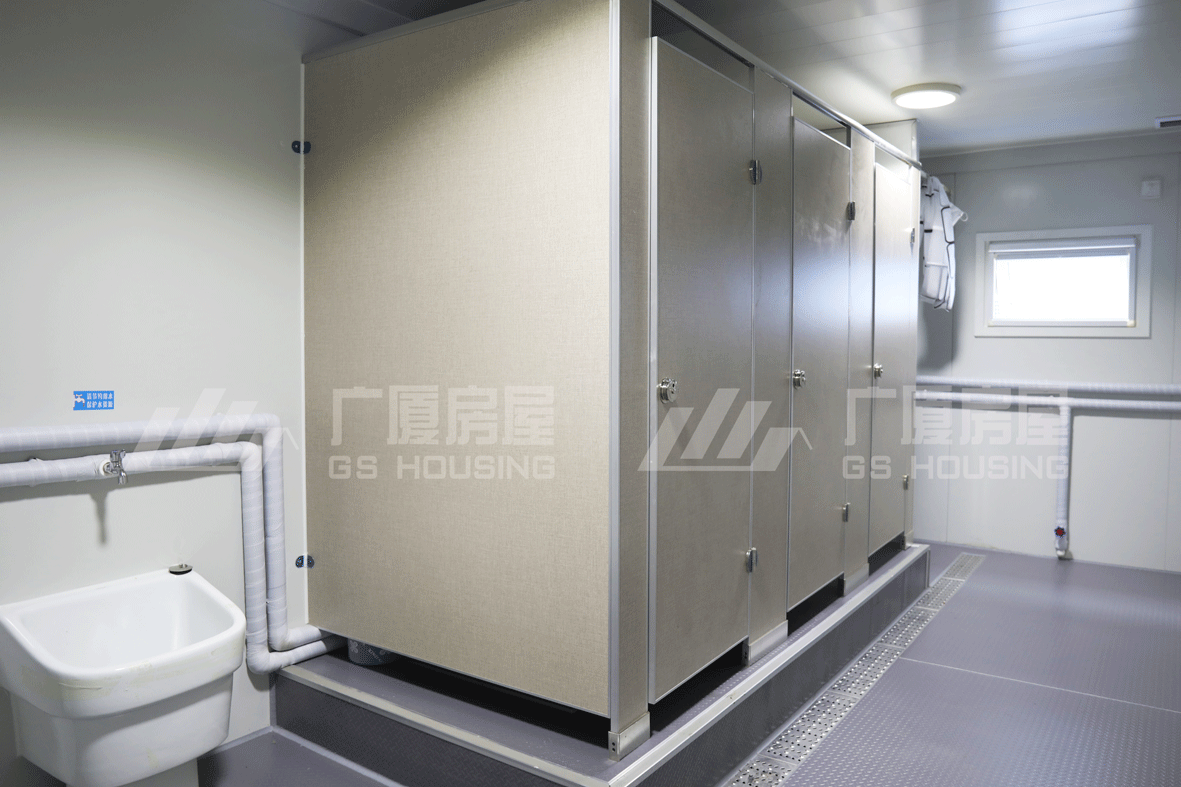

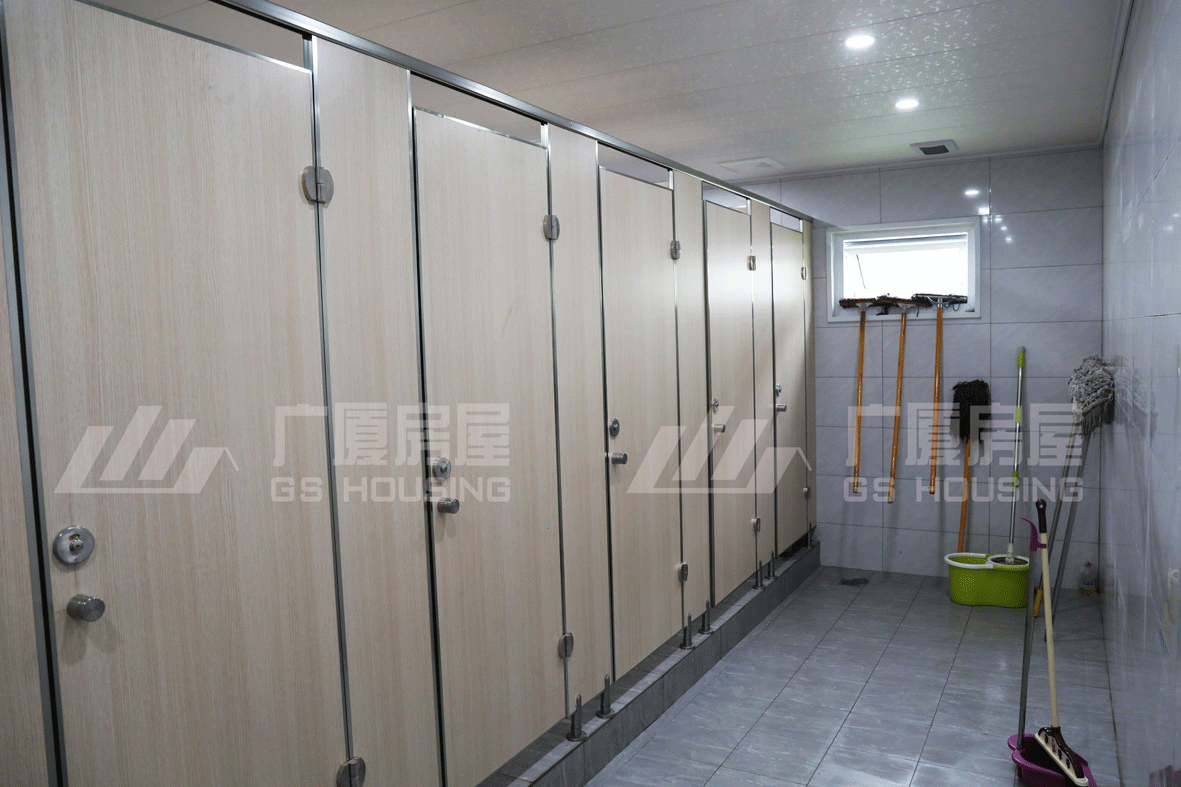

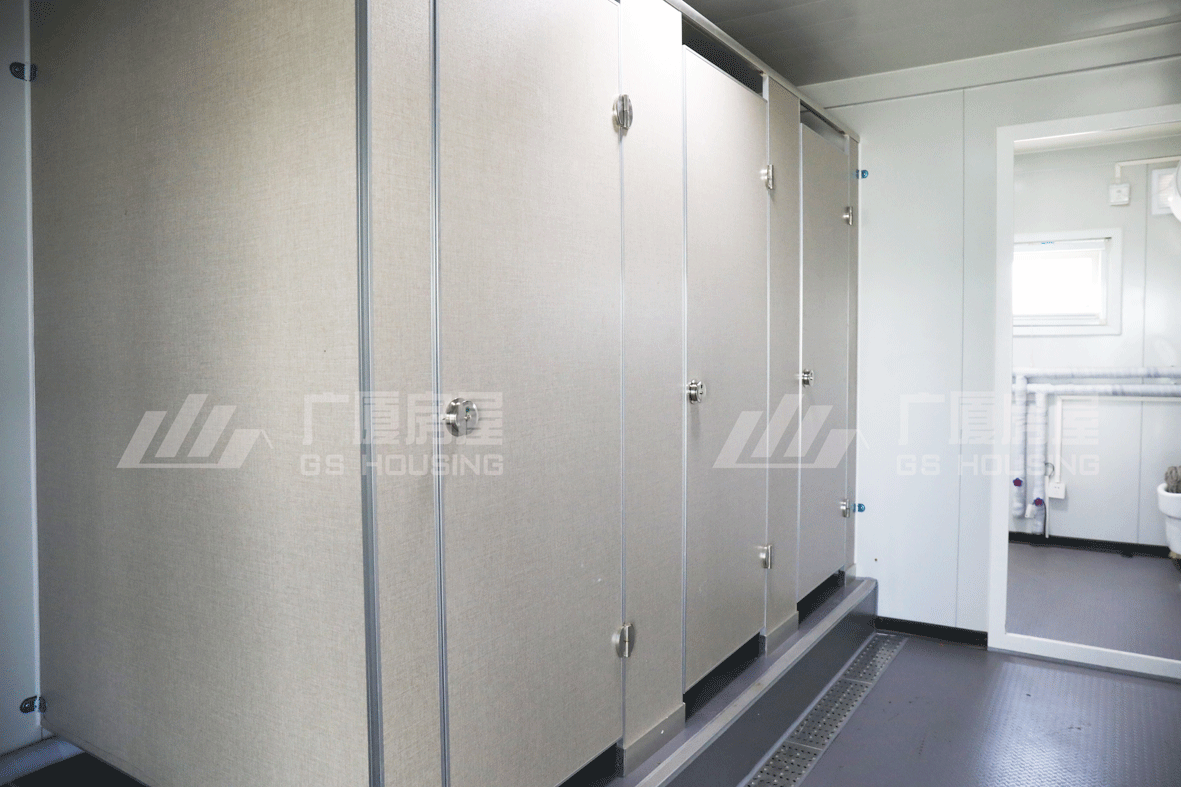

Impahla yenhlanzeko endlini yangasese yabesifazane ejwayelekile ihlanganisa izindlu zangasese ezi-5pcs zokugezela kanye namathangi amanzi, usinki we-mop ongu-1pcs nompompi ompompi, umcengezi wekholomu engu-1pcs kanye nompompi, izinsiza zangaphakathi zingaklanywa ngokuya ngezidingo ezahlukene zephrojekthi.
Ngaphezu kwalokho, ububanzi obujwayelekile bendlu yokugezela buyi-2.4/3M, indlu kasayizi omkhulu noma omncane ingenziwa ngokwezifiso.
Sanitary Wares Package
Izakhiwo Ezisezingeni Eliphezulu
Uhlaka oluphezulu
Umugqa oyinhloko:
3.0mm ugqinsi iphrofayili yensimbi egoqwe ngamakhaza, impahla:SGC340;
I-Sub-beam: yamukela i-7pcs galvanizing steel, impahla: Q345B, isikhawu: 755mm.
Ubukhulu bezindlu ze-modular emakethe buyi-2.5-2.7mm, impilo yesevisi cishe iminyaka eyi-15.cabanga ngephrojekthi yaphesheya kwezilwandle, ukunakekelwa akulula, sijiyile insimbi yezindlu, impilo yokusetshenziswa kweminyaka engama-20 iqinisekisiwe.
Uhlaka olungezansi:
Umugqa oyinhloko:
3.5mm ugqinsi iphrofayili yensimbi egoqelwe ebandayo, impahla:SGC340;
I-sub-beam: 9pcs "π" othayiphe insimbi yokufaka, impahla:Q345B,
Ubukhulu bezindlu ze-modular emakethe buyi-2.5-2.7mm, impilo yesevisi cishe iminyaka eyi-15.cabanga ngephrojekthi yaphesheya kwezilwandle, ukunakekelwa akulula, sijiyile insimbi yezindlu, impilo yokusetshenziswa kweminyaka engama-20 iqinisekisiwe.
Amakholomu:
Iphrofayili yensimbi egoqiwe engu-3.0mm, impahla: SGC440, amakholomu amane angashintshwa.
Amakholomu axhunywe nohlaka olungaphezulu kanye nohlaka olungezansi olunamabhawodi ekhanda eliyiHexagon (amandla: 8.8)
Qinisekisa ukuthi i-insulation block igcwaliswa ngemva kokuqeda ukufakwa kwamakholomu.
Engeza amateyipu okuvikela phakathi kwezinhlaka zezakhiwo kanye namaphaneli odonga ukuze uvimbele umphumela wamabhuloho abandayo nokushisa futhi uthuthukise ukusebenza kokugcina ukushisa nokonga amandla.
Amaphaneli wodonga:
Ubukhulu: Iphaneli yesangweji yensimbi eyi-60-120mm ewugqinsi,
Ibhodi langaphandle: Ibhodi elingaphandle lenziwe ngephethini yepebule yewolintshi engu-0.42mm i-Alu-zinc colorful steel plate, i-HDP enamathela,
Isendlalelo sokushisisa: 60-120 mm obukhulu be-hydrophobic basalt wool (ukuvikelwa kwemvelo), ukuminyana ≥100kg/m³, ukusebenza kokusha kuyi-Class A okungashi.
Iphaneli yodonga lwangaphakathi: Iphaneli yangaphakathi yamukela ipuleti lensimbi elimibalabala elingu-0.42mm le-Alu-zinc, i-PE coating,umbala: okumpunga okumhlophe,
Ukuqinisekisa ukufakwa kokushisa kwezimpahla, ukusebenza kokufakwa komsindo.
Isicelo Sezindlu Zangasese Zabesifazane
Ukufakwa kwendlu yangasese kuyinkimbinkimbi kakhulu kunezindlu ezijwayelekile, kepha sinemiyalo enemininingwane yokufaka namavidiyo, futhi ividiyo eku-inthanethi ingaxhunywa ukusiza amakhasimende ukuxazulula inkinga yokufaka, vele, abaphathi bokufaka bangathunyelwa esizeni. uma kudingeka.
Kunabasebenzi abangaphezu kuka-360 abafaka izindlu abaqeqeshiwe ezindlini ze-GS, abangaphezu kuka-80% basebenza e-GS Housing eminyakeni engu-8.Njengamanje, sebefake amaphrojekthi angaphezu kuka-2000 ngokushelela.
Izisekelo Zokukhiqiza Isingeniso
Izisekelo ezinhlanu zokukhiqiza ze-GS Housing zinamandla okukhiqiza aminyaka yonke wezindlu ezingaphezu kuka-170,000, amandla aphelele okukhiqiza nokusebenza ahlinzeka ngokusekelwa okuqinile kokukhiqizwa kwezindlu.Kanye namafekthri aklanywe ngohlobo lwengadi, imvelo yinhle kakhulu, ayizisekelo ezinkulu zokukhiqiza umkhiqizo wokwakhiwa kwezakhiwo ezintsha nezanamuhla eChina.Kusungulwe isikhungo esikhethekile socwaningo lwezindlu ukuze siqinisekise ukuthi sihlinzeka amakhasimende ngendawo yokwakha ephephile, ehambisana nemvelo, enobungani, ehlakaniphile nenethezekile.
Isisekelo sokukhiqiza kwefekthri ehlakaniphile e-Tianjin
Ikhava: 130,000㎡
Umthamo wokukhiqiza wonyaka: izindlu ezimisiwe ezingama-50,000
Isizinda sokukhiqiza sohlobo lwengadi e-Jiangsu
Ikhava: 80,000㎡
Umthamo wokukhiqiza waminyaka yonke: izindlu ezimisiwe ezingama-30,000
Imodeli ye-6S yefekthri- isisekelo sokukhiqiza e-Guangdong
Ikhava: 90,000 ㎡
Umthamo wokukhiqiza wonyaka: izindlu ezimisiwe ezingama-50,000
Isisekelo sokukhiqiza kwefekthri esisebenzayo e-Liaoning
Ikhava: 60,000㎡
Umthamo wokukhiqiza wonyaka: izindlu ezimisiwe ezingama-20,000.
Isizinda sokukhiqiza kwefekthri yezemvelo e-Sichuan
Ikhava: 60,000㎡
Umthamo wokukhiqiza wonyaka: izindlu ezimisiwe ezingama-20,000.
I-GS Housing inemigqa yokukhiqiza yezindlu esekelayo ethuthukisiwe, ehlanganisa imigqa yokukhiqiza yebhodi eyinhlanganisela ezenzakalelayo, imigqa yokufaka i-Graphene electrostatic spray, ama-workshops azimele, ama-workshops eminyango namafasitela, amaworkshops, ama-workshops, imishini yokusika amalangabi ye-CNC ezenzakalelayo, kanye nokusika i-laser. imishini, imishini yokushisela i-arc engaphansi emanzini, i-carbon dioxide shielded welding, imishini yokunyathelisa enamandla amakhulu, imishini yokugoba ebandayo, imishini yokugaya, imishini yokugoba ye-CNC kanye nemishini yokugunda njll. Abaqhubi bekhwalithi ephezulu bafakwe emshinini ngamunye, ukuze izindlu zizuze ngokugcwele. Ukukhiqizwa kwe-CNC, okuqinisekisa ukuthi izindlu zikhiqizwa ngesikhathi, ngendlela efanele futhi enembile.
| Imininingwane yendlu yangasese yabesifazane | ||
| Ukucaciswa | L*W*H (mm) | Usayizi wangaphandle 6055*2990/2435*2896 Usayizi wangaphakathi 5845*2780/2225*2590 usayizi owenziwe ngokwezifiso unganikezwa |
| Uhlobo lophahla | Uphahla oluyisicaba olunamapayipi amane angaphakathi (Drain-pipe cross size:40*80mm) | |
| Isitolo | ≤3 | |
| Idethi yokuklama | Impilo yesevisi edizayinelwe | Iminyaka engu-20 |
| Ukulayisha bukhoma phansi | 2.0KN/㎡ | |
| Ukulayisha okubukhoma kophahla | 0.5KN/㎡ | |
| Isimo sezulu | 0.6KN/㎡ | |
| I-Sermic | 8 degree | |
| Isakhiwo | Ikholomu | Ukucaciswa:210*150mm,Insimbi egoqayo ebandayo, t=3.0mm Material: SGC440 |
| I-Roof main beam | Ukucaciswa:180mm, Galvanized cold roll steel, t=3.0mm Material: SGC440 | |
| Ugongolo oluyinhloko lwaphansi | Ukucaciswa:160mm, Galvanized cold roll steel, t=3.5mm Material: SGC440 | |
| I-Roof sub beam | Ukucaciswa:C100*40*12*2.0*7PCS,Galvanized cold roll C steel,t=2.0mm Material:Q345B | |
| I-floor sub beam | Ukucaciswa:120*50*2.0*9pcs,”TT”insimbi ecindezelwe yomumo, t=2.0mm Material:Q345B | |
| Penda | I-powder electrostatic spraying lacquer≥80μm | |
| Uphahla | Iphaneli yophahla | Ishidi lensimbi elinemibala engu-0.5mm Zn-Al, elimhlophe-mpunga |
| I-insulation impahla | Uvolo wengilazi ongu-100mm one-Al foil eyodwa.ukuminyana ≥14kg/m³, Ikilasi A Elingashi | |
| Uphahla | I-V-193 0.5mm ecindezelwe ishidi lensimbi elinemibala e-Zn-Al, isikhonkwane esifihliwe, esimhlophe-mpunga | |
| Phansi | Indawo yaphansi | Ibhodi le-PVC elingu-2.0mm, impunga emnyama |
| Isisekelo | Ibhodi lefayibha likasimende elingu-19mm, ukuminyana≥1.3g/cm³ | |
| Isendlalelo sokuvikela umswakama | Ifilimu yepulasitiki engenamanzi | |
| Ipuleti lokuvala elingezansi | 0.3mm Zn-Al camera board | |
| Udonga | Ubukhulu | 75mm ipuleti lesemishi lensimbi elinemibala eliwugqinsi;Ipuleti yangaphandle:0.5mm ikhasi orange aluminium plated zinc colorful steel plate, indlovu emhlophe, PE enamathela;Ipuleti langaphakathi: 0.5mm i-aluminium-zinc plated ehlanzekile yensimbi yombala, grey emhlophe, i-PE coating;Adopt "S" uhlobo lwepulaki esibonakalayo ukuze uqede umthelela webhuloho elibandayo nelishisayo |
| I-insulation impahla | i-rock wool, ukuminyana≥100kg/m³, Ikilasi A elingashi | |
| Umnyango | Ukucaciswa (mm) | W*H=840*2035mm |
| Okubalulekile | Isivalo sensimbi | |
| Iwindi | Ukucaciswa (mm) | Iwindi: WXH=800*500; |
| Izinto zohlaka | Insimbi ye-pastic, 80S, Inenduku evimbela ukweba, iwindi lesikrini elingabonakali | |
| Ingilazi | 4mm+9A+4mm ingilazi ephindwe kabili | |
| Ezogesi | Amandla kagesi | 220V~250V / 100V~130V |
| Intambo | Intambo eyinhloko:6㎡, intambo ye-AC:4.0㎡,intambo yesokhethi:2.5㎡,intambo yokushintsha ukukhanya:1.5㎡ | |
| Umaphuli | I-miniature circuit breaker | |
| Ukukhanyisa | Izibani eziyindilinga eziphindwe kabili, i-18W | |
| Isokhethi | 2pcs 5 izimbobo isokhethi 10A, 1pcs 3 izimbobo AC isokhethi 16A, 1pcs single uxhumano indiza switch 10A, (EU / US ..standard) | |
| I-Water Supply & Drainage System | Uhlelo lokuhlinzeka ngamanzi | I-DN32, PP-R, ipayipi lokuphakela amanzi nokufakwa |
| Uhlelo lokudonsa amanzi | I-De110/De50, ipayipi lokudonsa amanzi le-UPVC nokufakwa | |
| Uhlaka Lwensimbi | Izinto zohlaka | Ipayipi lesikwele esiphekiwe 口40*40*2 |
| Isisekelo | Ibhodi lefayibha likasimende elingu-19mm, ukuminyana≥1.3g/cm³ | |
| Phansi | Iphansi le-PVC eliwugqinsi elingu-2.0mm, elimpunga ngokumnyama | |
| Impahla yenhlanzeko | Izinto zikagesi zenhlanzeko | Izindlu zangasese ezi-squatting namathangi amanzi angu-5, usinki wemophu ongu-1 kanye nompompi ompompi, izitsha zamakholomu ezi-2 kanye nompompi |
| Ukwahlukanisa | 1200 * 900 * 1800 Ukulingiswa okusanhlamvu kwezinkuni, i-aluminium alloy slot card, unqenqema lwensimbi engagqwali | |
| Ukufakwa | Ibhokisi lethishu elingu-1, ama-pcs angu-2 izibuko zokugezela, gutter yensimbi engagqwali, i-gutter yensimbi engagqwali, 1 pcs idrayivu yaphansi emile | |
| Abanye | Ingxenye ephezulu nekholomu ihlobisa ingxenye | 0.6mm ishidi lensimbi enombala we-Zn-Al, elimhlophe-mpunga |
| I-Skirting | 0.8mm i-Zn-Al enombala ohlanganiswe isiketi sensimbi, esimhlophe-mpunga | |
| Izivalo zeminyango | I-1 pcs Isivalo Somnyango, i-Aluminium (uma uthanda) | |
| I-Exhaust fan | I-1 pcs ye-wall exhaust fan, ikepisi yensimbi engenasici evimbela imvula | |
| Adopt ukwakhiwa okujwayelekile, okokusebenza nokufakwayo kuhambisana nezinga likazwelonke.kanye, usayizi owenziwe ngezifiso kanye nezinsiza ezihlobene zinganikezwa ngokwezidingo zakho. | ||
